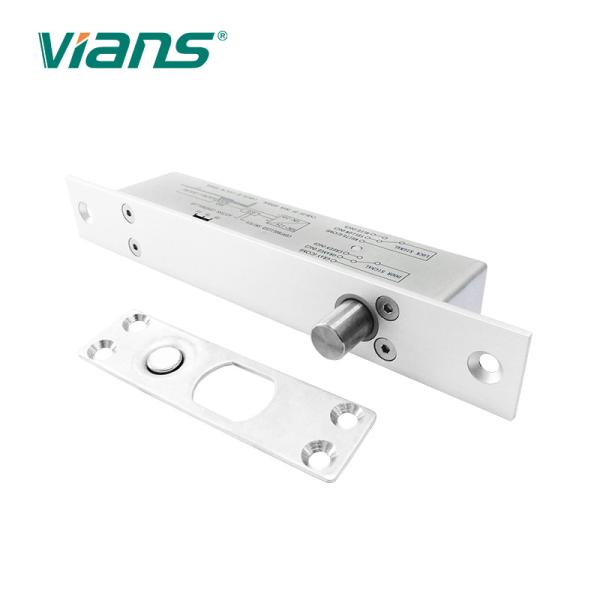

Fail Secure Long Panel Electric Bolt Lock With Timer Lock Signal
Output
More details about this product
This product is designed narrow-frame door. Its panel is smaller
than usual model of electric bolt lock. The width of the panel of
this model is 24.5mm, while other models of are much bigger. Take
VI-801 for example, its width is 35mm. With the narrower panel,
this model of elelctric bolt lock is suitable for narrow frame
door. Besides, we could customize the security type for this model.
Fail-safe or fail-secure, that's all up to your choice.
Paremeter of this product
| Items | Value |
| Model | VI-807ST |
| Function | Access control system lock |
| Lock Size | 200Lx24Wx39H(mm) |
| Strike Size | 90Lx25Wx2(mm) |
| Input Voltage | DC12V±10% |
| Working Current | 80mA |
| Weight | 0.75kgs |
| Working Temperature | ultra-Low design |
| Security Type | Power off to unlock(Can customized to power off to lock) |
| Time Delay | YES |
| Signal output | YES |
| Door Type Applicable | Wooden door/Glass door/Metal door/Fireproof door/Sliding door |
| Installation | External mounting |
| OEM Service | Ok |
| Certifications | UL/CE/FCC/RoHS |
| Warranty | 5 Years |
Related products of this product
If possible, you could also tell me more details about the images
about the locks you need. We will help to analyse and try to
firgure out the best solution for you.
